In gameoptions.json
, you can define your game options (i.e. game variants).
In gamepreferences.json
, you can define user preferences.
Note: If your game has no variants or preferences, you don't have to modify these files.
IMPORTANT: after edits to these files, you have to go to the control panel and press "Reload game options configuration" on Studio for your changes to take effect.
Make sure you understand difference between options and preferences:
- Game options - something usually in the rule book defined as "variant" (except for player count, which is automatically handled). For example, whether to include The River in Carcassonne.
- User preferences - personal choices of each player only visible to that specific player - i.e. layout, whether or not to prompt for action, whether or not auto-opt in in some actions, etc.
Game Options
Game options are selected by the table creator and usually correspond to game variants, for example if the game includes expansions or certain special rules.
These variants are defined in gameoptions.json
as an object:
{ "100": { "name": "Game Setup", ... }, "101": { "name": "Draft", ... } }
Each key corresponds to the option id, and each value is that option definition, which is described below.
Note: the file must be valid JSON. That is, trailing commas and comments are not allowed. However you can use still standard json hack to add a field like "$comment": "Here we go"
Note 2: the key in json file must be a string type, even its correspond to a number in other places (such as php, or other references in same json).
All options defined in this file should have a corresponding "game state label" with the same ID (see "initGameStateLabels" in yourgame.game.php)
self::initGameStateLabels ([ ... "my_game_variant" => 100, ]);
Numbers have to be exactly from 100 to 199 (there can be gaps).
That is how you access them during runtime (by name):
public function isSecondVariant() { return $this->getGameStateValue('my_game_variant') == 2; }
Or this (by numberic id)
$this->gamestate->table_globals[100]
To access json data (the metadata only) can use
$game_options = $this->getTableOptions();
Details of game options format
The following are the values of the option definition object:
- name - mandatory. The name of the option visible for table creator. This is automatically marked for translation.
- values - mandatory. The map representing possible values of this option. The key of the map is possible value of this option, its a number but has to be string in json. The value is an object descring it.
- name - mandatory. String representation of the numeric value visible to table creator. This is automatically marked for translation.
- description - String description of this value to use when the name of the option is not self-explanatory. Displayed at the table under the option when this value is selected. Note: if there is no description, this should be omitted.
- tmdisplay - String representation of the option visible in the table description in the lobby. Usually if a variant values are On and Off (default), the tmdisplay would be same as description name when On, and nothing (empty string) when Off. (Warning: due to some caching, a change in tmdisplay may not be effective immediately in the studio, even after forcing a reload of options.) Pro Tip: You can use this as a pre-game communication by adding fake options that just do nothing in the game but make it easier to find other player wanted the same game configuration (see the crew deep sea for example).
- nobeginner - Set to true if not recommended for beginners
- firstgameonly - Set to true if this option is recommended only for the first game (discovery option)
- beta - Set to true to indicate that this option is in "beta" development stage (there will be a warning for players starting the game)
- alpha - Set to true to indicate that this option is in "alpha" development stage (there will be a warning, and starting the game will be allowed only in training mode except for the developer)
- premium - Option can be only used by premium members
- default - indicates the default value to use for this option (optional, if not present the first value listed is the default)
- displaycondition - (array of conditions) - checks the conditions before displaying the option for selection. All (or any) conditions must be true for the option to be displayed. All or any depends on value of displayconditionoperand
Supported display condition types:
- minplayers condition ensures at least this many players (Note: if your game works with a disjoint interval of player counts, you can supply an array of valid counts instead of a single value)
- maxplayers condition ensures at most this many players
- otheroption condition ensures another option is set to given values.
- otheroptionisnot condition ensure another option is NOT set to this given values
- displayconditionoperand - can be 'and' (this is the default) or 'or'. Allows to change the behaviour to display the option if one of the conditions is true instead of all of them.
- startcondition - (map from value to conditions array) - checks the conditions (on options VALUES) before starting the game. All conditions must be true for the game to start, otherwise players will get a red error message when attempting to begin the game.
Supported start condition types:
- minplayers condition ensures at least this many players (an array of values is not supported here)
- maxplayers condition ensures at most this many players
- otheroption conditions ensure another option is set to this given values. That works the same as in displaycondition.
- otheroptionisnot conditions ensure another option is NOT set to this given value. That works the same as in displaycondition.
- For all these condition types, a gamestartonly boolean option can be added, if you have options that are exclusive. Setting this boolean to true will defer the evaluation of the startcondition to the game creation, instead of preventing the player to select options that are exclusive at all. See below for an example. But this should never be used -- see the warning below
- notdisplayedmessage - if option is not suppose to be visible because of displaycondition but this is set, the text will be visible instead of combo drop down
- level - what kind of option it is: base, major, or additional. See below for more informations.
Common (reserved) options for all tables (reserved range 200-299):
- 201 (const GAMESTATE_RATING_MODE) - ELO OFF (aka Training mode),
- 0 = Normal
- 1 = Training
- 2 = Arena
- 200 (const GAMESTATE_CLOCK_MODE) - game speed profile
- [0, 1, 2] - realtime (technically <10 realtime but you cannot define range in php)
- values >=10 - turn based (currently 10..21)
- Note there are two similar values, 9 = realtime "no time limit with friends only" vs. 20 = turn-based "no time limit with friends only"
Example:
{ "100": { "name": "Game Variant", "values": { "1": { "name": "Learning", "firstgameonly": true, "tmdisplay": "Learning" }, "2": { "name": "Base", }, "3": { "name": "Extended", "nobeginner": true, "beta": true, "tmdisplay": "Extended" } }, "default": 2 }, "101": { "name": "Draft variant", "values": { "1": { "name": "No draft" }, "2": { "name": "Draft", "tmdisplay": "Draft", "premium": true, "nobeginner": true } }, "displaycondition": [ { "type": "otheroption", "id": 100, "value": [ 2, 3 ] }, { "type": "otheroption", "id": 201, "value": 1 } ], "startcondition": { "1": [], "2": [ { "type": "maxplayers", "value": 3, "message": "Draft option is available for 3 players maximum." } ] } }, "102": { "name": "Takeovers", "values": { "2": { "name": "No takeover" }, "1": { "name": "Allow takeovers", "tmdisplay": "Takeovers", "premium": true, "nobeginner": true } }, "displaycondition": [ { "type": "otheroption", "id": 100, "value": [ 3 ] } ], "startcondition": { "2": [], "1": [ { "type": "maxplayers", "value": 2, "message": "Rebel vs Imperium Takeover Scenario is available for 2 players only." } ] } } }
Example of option that condition on ELO off:
{ "100": { "name": "Learning Game (No Research)", "values": { "1": { "name": "Off", "tmdisplay": "" }, "2": { "name": "On", "tmdisplay": "Learning Game" } }, "startcondition": { "2": { "type": "otheroption", "id": 201, "value": 1, "message": "Learning variant available only in friendly mode" } } } }
Example of condition that is only available for REALTIME game mode:
"displaycondition": [ { "type": "otheroption", "id": 200, "value": [0, 1, 2] } ],
Example of using condition on your own option:
{ "102": { "name": "Scenarios", "values": { "1": { "name": "Off", "nobeginner": false }, "2": { "name": "On", "tmdisplay": "Scenarios", "nobeginner": true } }, "displaycondition": [ { "type": "otheroptionisnot", "id": 100, "value": 1 } ], "notdisplayedmessage": "Scenarios variant is not available if Learning variant is chosen" } }
Example of handling solo vs multiplayer options:
{ "100": { "name": "Board setup", "values": { "1": { "name": "Mirror setup", "description": "The starting player shuffles their 6 Farm Cards and randomly lays a card face up in each of the round spaces of their Fruit Island Board. The other players then lay their cards in exactly the same way, copying the order of the starting player.", "tmdisplay": "Mirror setup" }, "2": { "name": "Random setup", "description": "Instead of every player copying the same card configuration as the starting player, every player shuffles their Farm Cards and lays down the cards randomly on their Fruit Island Board.", "tmdisplay": "Random setup" } }, "displaycondition": [ { "type": "minplayers", "value": [ 2, 3, 4 ] } ] }, "102": { "name": "Solo difficulty", "values": [ { "name": "Banana-apprentice", "description": "Do not remove any seed before starting the game.", "tmdisplay": "Banana-apprentice" }, { "name": "Pear to the Throne", "description": "Remove 1 seed before starting the game.", "tmdisplay": "Pear to the Throne" } ], "displaycondition": [ { "type": "maxplayers", "value": 1 } ] } }
displaycondition vs startcondition
displaycondition
should be used when an option should not be present in the list under certain conditions.
For example, displaying the option which is consistent with the player count.
- 2 player maps: A B C D
- 3 player maps: E F G H
- 4 player maps: I J K L
startcondition
should be used when a specific combination of option values is invalid, but the option itself still makes sense to show.
For example:
- Player 1 faction: A, B, C, D, E, F, G
- Player 2 faction: A, B, C, D, E, F, G
- startcondition: both players can't be the same faction
These options should both be displayed at all times, but there are some invalid configurations.
The other difference is displaycondition affect option itself, while startcondition affect specific values selected
gamestartonly
WARNING: See studio bug #104. You should NEVER use gamestartonly
! Otherwise, you allow players to (unknowingly!) create a turn-based table with impossible options that can never start. Players receive no indication that the option combination they selected is invalid until the last player joins the table (hours or days later) and the game attempts to auto-start. The table won't start because of the startcondition
, and the table options cannot be changed because it's a turn-based table, so the table must be abandoned. This is a horrible user experience. Please don't subject players to this.
On the table configuration page, it won't let you select a combination which is invalid according to startcondition
. Doing so will show a red warning, and will revert the option to the previous value. This means you could end up in a situation where you can't easily change between certain options (requiring you to set or unset options in a specific order).
The consequence of the gamestartonly
flag is that the player _can_ select an invalid combination. However, when clicking "Start", an invalid combination will produce an error.
Probably the easiest way to see what the difference is is with an example.
With a _Clans of Caledonia_ table:
- set to training mode
- set player count to 1
- try setting "Clan Auction" to one of the "On" options
- try starting the game, there's an error! Ie.
"gamestartonly" => true
Then, with a _Sushi Go Party!_ table:
- set number of players to 7
- try setting "Sushi Go! / Sushi Go Party!" to "Sushi Go!"
- you can't set the option! Ie.
"gamestartonly" => false
In code:
{ "100": { "name": "Option name", "values": [], "startcondition": { "1": [ { "type": "maxplayers", "value": 2, "message": "This option is available for 2 players only.", "gamestartonly": true } ] } } }
level
Note: at this moment this only have impact in fancy lobby mode, presentation of level or checkboxes are not avaiable via normal table creation ui (such as in studio, or when you click Play button in control panel)
{ "100": { "name": "Option name", "values": [...], "level": "major" } }
- base is the default value (you don't need to specify it).
- major denotes a major option, which will always be displayed on top, and with a specific UI.
- additional means this option will not be displayed by default, to unclutter the option panel.
About major options:
- a game can only have 1 major option, and of course, it must be a important game changer.
- the pictures will default to the standard Game Box, and can be set independently for each value, from the Game metadata manager (in the "Major Variants" section). Note: this cannot be tested from Studio as there is not studio-only Game metadata manager, to see Major Variants option - the game has to be deployed at least as alpha.
- the major option can have more than 2 values (there will then be an arrow to slide to the other values, carousel-like)
- the naming of major variant values should be concise and the values should have descriptive text (not just "enabled" or "disabled")
- 👍 Option name "Expansion", option values "Base game", "Bigger is Better" => Displayed as "Expansion: Base game" or "Expansion: Bigger is Better"
- 👎 Option name "Bigger is Better", option values "Enabled", "Disabled => Displayed as "Bigger is Better: Enabled" or "Bigger is Better: Disabled"
About additional options:
- please set each option that concerns small details in this category: advanced players will find this option anyway, and it will simplify the interface of the page of your game.
option presentation
An option WILL be displayed as a Checkbox instead of a selector if certain conditions are met:
- option has only 2 values
- values are either (case insensitive):
- yes and no
- on and off
- enabled and disabled
The "default" value still has to be specified, and can be "on" or "off" (it's actually just a difference in display).
User Preferences
User preferences is something cosmetic about the game interface which however can create user wars, so you can satisfy all users by giving them individual preferences. You should use this only if it significantly improves the interface for a large proportion of users. These preferences appear in the three-line hamburger menu in the top corner of the bga menu (and also at the bottom on the page in the Options tab). "Display game logs" and "Display tooltips" are baked-in by default, but you can extend this list as below.
The preference json slightly resembles options, but these are conceptually different. The numbers comes from diffrent space and do not correspond or conflict with options, i.e. preference 100 has nothing to do with option 100. You can use range 100-199 with gaps.
These preferences are a good place to put accessibility options - as Century did for its Colorblind Support.
{ "100": { "name": "Colorblind Support", "needReload": true, "values": { "1": { "name": "None", "cssPref": "colorblind_off" }, "2": { "name": "Numbers", "cssPref": "colorblind_on" }, "3": { "name": "Shapes", "cssPref": "colorblind_shapes" } }, "default": 1 } }
There is two ways to check/apply this. In javascript
if (this.getGameUserPreference(100) == 2) ...
This checks if preferences 100 has selected value 2.
Second, if cssPref is specified, it will be applied to the <html> tag. So you can use different css styling for the preference. Note: you also need to set needReload to true for that class change to be effective.

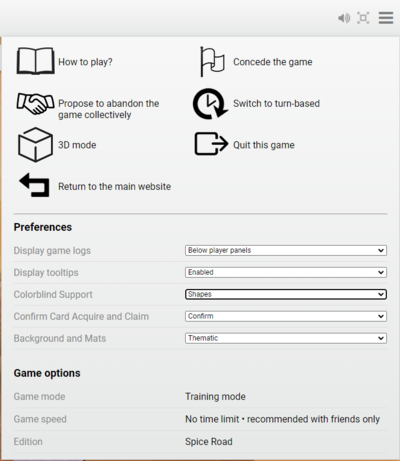

As user you have to select them from the Gear menu when game is started. On studio only dev0 account will have it actually working (bug?).
The following are the parameters of preferences description array:
- name - mandatory. The name of the preference. This string is marked for translation.
- needReload - If set to true, the game interface will auto-reload after a change of the preference.
- values - mandatory. The map of values with additional parameters per value.
- name - mandatory. String representation of the numeric value. This string is marked for translation.
- cssPref - CSS class to add to the <html> tag. Currently it is added or removed only after a reload (see needReload).
- default - Indicates the default value to use for this preference (optional, if not present the first value listed is the default).
Listening for preference changes and updating preference from code
The BGA framework offers read/write and callback for user preference changes. See Game interface logic: yourgamename.js#User preferences
Accessing User Preferences on the server
PHP has a variable called $this->player_preferences. This contains a table of player preferences, ONLY accessible in setupNewGame(). You can use this to populate a table that you manage yourself. You have to update the table when a player changes preference (and you have to hook up a listener and initiate an AJAX call out-of-turn). Check the code of Agricola for details but this should work:
- In dbmodel.sql
CREATE TABLE IF NOT EXISTS `user_preferences` ( `player_id` int(10) NOT NULL, `pref_id` int(10) NOT NULL, `pref_value` int(10) NOT NULL, PRIMARY KEY (`player_id`, `pref_id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8;
- In ggg.game.php
protected function setupNewGame($players, $options = array()) { // TODO: Save $this->player_preferences: key is player_id, value is array with pref_id as key and pref_value as value }
Warning: $this->player_preferences[$player_id]
can be null if the player has not set any player preferences.
Note: to access json values you can call:
$game_preferences = $this->getTablePreferences();
Warning: if you use bga undo system make sure this table is not restored from undo state, as this likely independed from it
- In ggg.js
// use code for initPreferencesObserver from above example onGameUserPreferenceChanged(prefId, prefValue) { if (prefId === 101 /*TODO: You probably want to send only some preferences*/) { // TODO: Code your own action in ggg.action.php and send it prefId and prefValue // The on the server side you can save it all in the user_preferences // table you created above. } },
Translations
Note that any name or description values in these JSON files are automatically added to the translation system.
Migration
Previously, options and preferences were specified in a single gameoptions.inc.php
file.
BGA has switched to a JSON format to make parsing easier on the server-side, and to avoid a reliance on PHP for static config.
The PHP format will continue to work for existing games, and although preferred, there is no need to migrate unless you want to. However, newly created games must use the new format.
Note: once a game has been committed with a gameoptions.json
file, however, it is not possible to go back without admin intervention.
If you want to migrate:
Simple method:
- Go to studio and press Reload game options configuration
- It will dump json on the log window - you can take this, format it and save into 2 files (if you have both). For gamepreference.json remove option "200" - this is default common option, it should not be in your file.
Manual method:
- Remove all calls to
totranslate()
, and replace with the plain string - Remove any references to BGA's PHP constants, such as GAMESTATE_RATING_MODE, and replace with the plain value (in this case, 201)
- You can populate
gameinfos.json
with the result ofjson_encode($game_options, JSON_PRETTY_PRINT)
- You can populate
gamepreferences.json
with the result ofjson_encode($game_preferences, JSON_PRETTY_PRINT)
- If you include gameoptions.inc.php directly, to read the values, then replace those calls with
$this->getTableOptions()
or$this->getTablePreferences()
as appropriate which return arrays parsed from the JSON files
This message was posted to the developer Discord channel:
Game options change (Optional!)
gameoptions.inc.php
is now considered legacy, andgameoptions.json
andgamepreferences.json
are recommended for new projects:
- The wiki and the template project have been updated: https://en.doc.boardgamearena.com/Options_and_preferences:_gameoptions.json,_gamepreferences.json
- Any questions/problems can come to me, or can be asked here.
- The format of the json files matches the format of the old php files
We realise there are some drawbacks (sorry!):
- No comments in the JSON file, meaning you have to check the wiki for examples
- No PHP constants in the JSON file, meaning magic numbers
However, we hope it's good for BGA because:
- Simpler to parse (for robots and humans)
- Easier to check for errors (we could perhaps use an XSLT one day)
- No need to run game-specific PHP code on the metasite
NOTE: Switching is totally optional, and the legacy files will still work for existing projects, and for those who know about them.
